Full Description

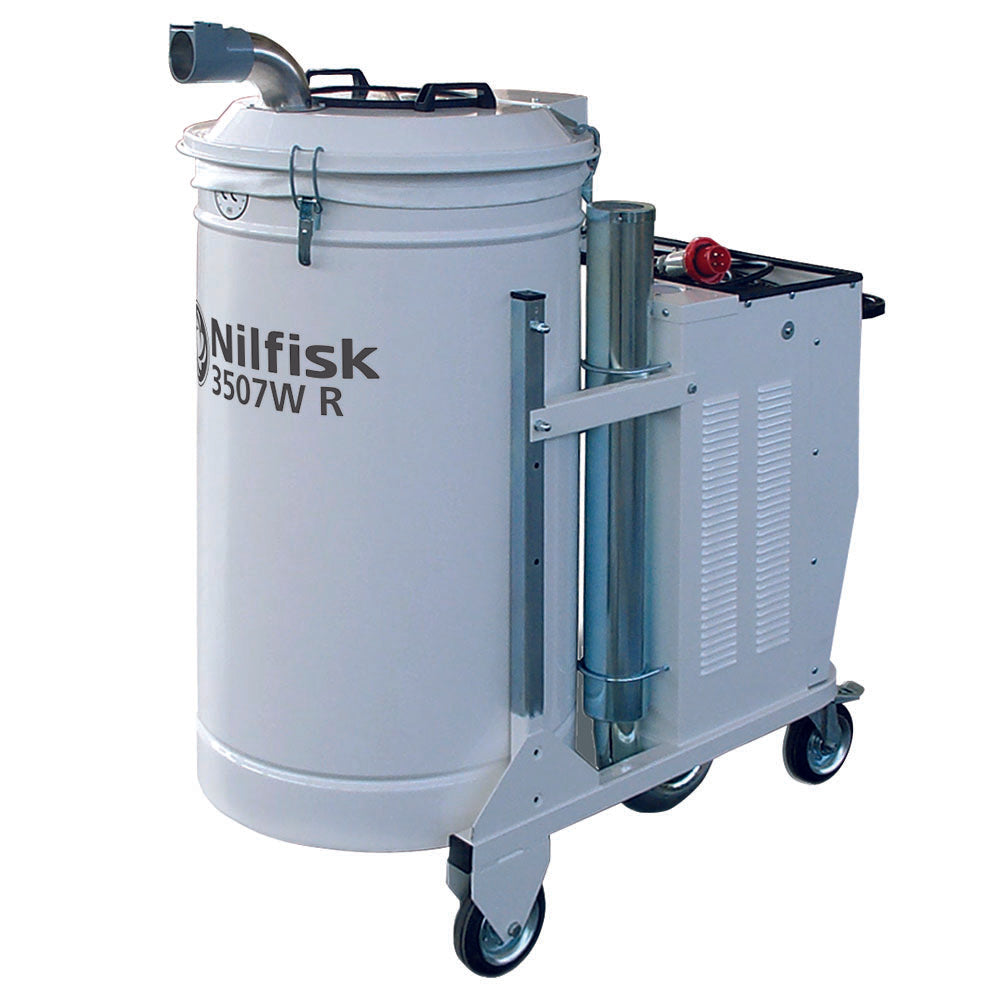

xIndustrial vacuum for the collection of plastic, paper or textile trims. Its suction power, its features and its size make it the right vacuum to operate in packaging areas.
Model 3507W R is equipped with a 4 kW threephase motor. It mounts a nylon filter, however specific filters for dust extraction are available. The threephase suction unit is placed under the container, the liner is spread out and completely open and all product vacuumed in is neatly compacted on the bottom, optimising the container capacity. Stainless steel version.
- High power
- High container capacity
- Quick visual level control: plexiglass port-hole in the lid
- Low noise level
- No maintenance needed
- Ideal to be integrated into packaging machines
Specification
x
Product Model
3710-4030900029
Rated power (W)
4000
Voltage (V)
400
Weight (KG)
155
Container capacity ( L )
215
Sound pressure level at 1.5 m (DB(A)ISO 3744)
74
Main filter area (CM²)
19.400
Airflow without hose (L/SEC)
143
Frequency (HZ)
50
Vacuum max (KPA)
30
Insulation class
F
Inlet (mm)
70
IP protection class
55
Main filter type
POLYESTER MOD. R560
Length x width x height (MM)
1200x700x1400
Switch motor protector
Filter bag
5 pin plug
Inspection window
Silencer
